MRD X - S - CR - 005 - D2
MRD series low-voltage servo drives
The MRD series servo drive is an ultra-small motor drive for mobile robots, with a modular design and a reliable control interface, which can be quickly and easily integrated for customers.
Recommended applicable types
Fork type
Jacking type
Platform handling type
Cooperation type
Roller type
Pick type
Mecanum type
Towing type
Parking type
Outdoor type
Commercial service type
User-defined type
Basic parameters
Model | MRD200-S-CR-005 | MRD400-S-CR-005 | MRD600-S-CR-005 | MRD750-S-CR-005 | MRD1000-S-CR-005 |
Description | 200W Servo Drive | 400W Servo Drive | 600W Servo Drive | 750W Servo Drive | 1000W Servo Drive |
Dimensions | 107x77.4x39 mm | 107x77.4x39 mm | 107x77.4x39 mm | 107x77.4x39 mm | 107x77.4x39 mm |
Power Supply | 18-60 VDC | 18-60 VDC | 18-60 VDC | 18-60 VDC | 18-60 VDC |
Max Current | 6 Arms | 10 Arms | 15 Arms | 19 Arms | 28 Arms |
Max Output Current | 19.6 Ap | 31 Ap | 49.3 Ap | 59 Ap | 87 Ap |
Comm. Interface | CAN | CAN | CAN | CAN | CAN |
Debug Port | RS232 | RS232 | RS232 | RS232 | RS232 |
Feedback Signal | Absolute Encoder | Absolute Encoder | Absolute Encoder | Absolute Encoder | Absolute Encoder |
Brake Function | 1x 24V/1A Output (External 24V) | 1x 24V/1A Output (External 24V) | 1x 24V/1A Output (External 24V) | 1x 24V/1A Output (External 24V) | 1x 24V/1A Output (External 24V) |
Cooling | Natural Cooling | Natural Cooling | Natural Cooling | Natural Cooling | Natural Cooling |
Protection | Over/Under Voltage, Overheat, Short Circuit | Over/Under Voltage, Overheat, Short Circuit | Over/Under Voltage, Overheat, Short Circuit | Over/Under Voltage, Overheat, Short Circuit | Over/Under Voltage, Overheat, Short Circuit |
Op. Temp | -20~+70℃ | -20~+70℃ | -20~+70℃ | -20~+70℃ | -20~+70℃ |
Storage Temp | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ | -40~+85℃ |
EMC | Ind Level 2 B | Ind Level 2 B | Ind Level 2 B | Ind Level 2 B | Ind Level 2 B |
Op. Humidity | 10%~90%RH No Condensation | 10%~90%RH No Condensation | 10%~90%RH No Condensation | 10%~90%RH No Condensation | 10%~90%RH No Condensation |
Storage Humidity | 5%~95%RH No Condensation | 5%~95%RH No Condensation | 5%~95%RH No Condensation | 5%~95%RH No Condensation | 5%~95%RH No Condensation |
Corrosion | Meets Co. Standards | Meets Co. Standards | Meets Co. Standards | Meets Co. Standards | Meets Co. Standards |
Protection Level | IP20 | IP20 | IP20 | IP20 | IP20 |
Installation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
Related solutions

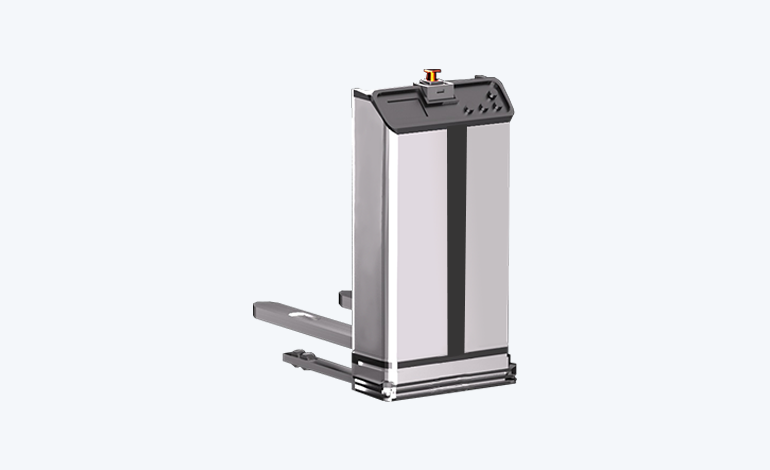

Fork type
Fork mobile robots are suitable for loading, unloading, stacking, and transporting pallet goods of different heights. It can complete a series of actions, such as lifting, carrying, and transporting palletized goods without additional special carriers, to realize less labour force and automatic logistics on the factory.
The overall solution of fork-type handling mobile robot is mainly divided into nine modules according to the whole vehicle function of the mobile robot, such as control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and optional functions.
Detail
The overall solution of fork-type handling mobile robot is mainly divided into nine modules according to the whole vehicle function of the mobile robot, such as control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and optional functions.
Jacking type
The Jacking-type mobile robot carries pallets, shelves, and other carriers by jacking, lifts the transported materials and shelves, transports them quickly to the designated position, and completes the shelf deployment, sorting, integration, and other work in the storage plant workshop. It automatically connects with the transplantation mechanism, lifting and lowering mechanism, and the equipment of the standing library, to achieve unmanned operation.
The overall solution of jacking and transporting type, according to the whole vehicle function of mobile robot, is mainly divided into the control system, navigation, and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, optional additional functions, such as the composition of the nine major unit modules.
Detail
The overall solution of jacking and transporting type, according to the whole vehicle function of mobile robot, is mainly divided into the control system, navigation, and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, optional additional functions, such as the composition of the nine major unit modules.

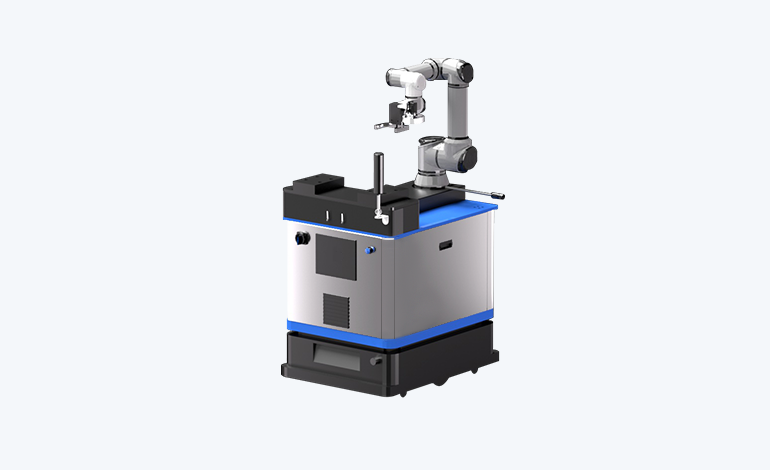

Cooperation type
Cooperation mobile robots in the unmanned handling chassis based on the addition of a robotic arm can complete the material in the mobile robot and equipment between the machine loading and unloading work, but also through the vision sensor on the arm of the material all-round detection.
The cooperation mobile robot's overall solution, according to the mobile robot vehicle function, is mainly divided into the control system, navigation sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and optional functions, such as nine unit module composition.
Detail
The cooperation mobile robot's overall solution, according to the mobile robot vehicle function, is mainly divided into the control system, navigation sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and optional functions, such as nine unit module composition.
Roller type
The roller mobile robot is to add a roller mechanism based on unmanned handling chassis to form a production line docking robot, which can achieve a seamless connection between workshop and warehouse, production line and production line, and production equipment and production equipment.
The overall solution of the roller mobile robot is mainly divided into nine unit modules, such as control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and add functions, etc., according to the function of the whole vehicle of the mobile robot.
Detail
The overall solution of the roller mobile robot is mainly divided into nine unit modules, such as control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, and add functions, etc., according to the function of the whole vehicle of the mobile robot.

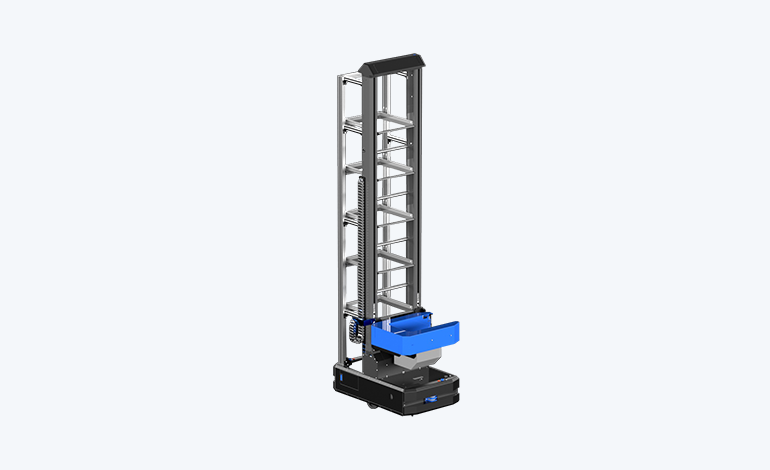

Pick type
Pick robot is an intelligent logistics handling equipment, which can realize intelligent picking, accessing and handling of multiple pallet. Without the use of any track, it can move forward, backward, turn, with autonomous navigation, active obstacle avoidance and automatic charging and other functions.
According to the whole vehicle function of the mobile robot, the overall solution of the bin-type mobile robot is mainly divided into control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, add functions and other nine unit modules.
Detail
According to the whole vehicle function of the mobile robot, the overall solution of the bin-type mobile robot is mainly divided into control system, navigation and sensing, chassis drive, actuator, safety detection, interaction module, communication module, power supply unit, add functions and other nine unit modules.

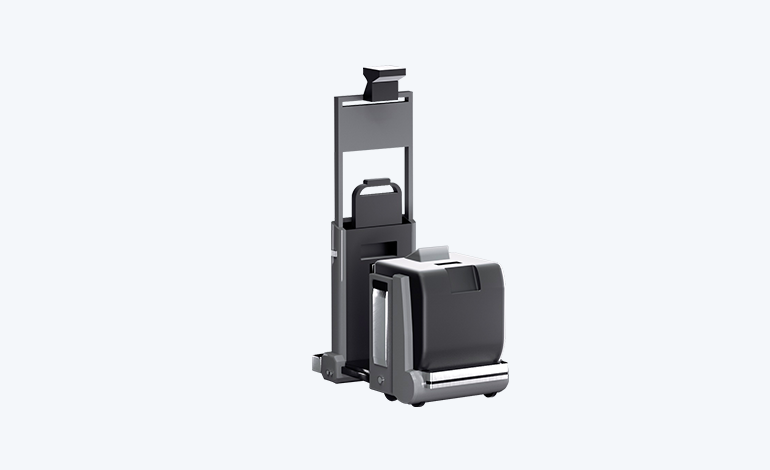

Towing type
The towing mobile robot adopts a tail hook to tow material trolleys, which can tow several material trolleys at the same time to achieve efficient handling and improve transport efficiency. It is suitable for the transfer of material trolleys in the production workshop and the delivery of material trolleys to the workstations.
The overall solution of a traction mobile robot is mainly divided into control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other units and modules according to the function of the whole vehicle of the mobile robot.
Detail
The overall solution of a traction mobile robot is mainly divided into control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other units and modules according to the function of the whole vehicle of the mobile robot.
Heavy-load type
The heavy-duty mobile robot is a kind of intelligent vehicle powered by a battery or an internal combustion engine, equipped with high-power motors, gearboxes, and universal drive wheels to achieve flexible operation, with speed adjustment, lift compensation, vehicle braking, omnidirectional steering, free path planning, automatic guidance, online fast charging, multi-vehicle grouping linkage and other functions, and at the same time, can be centrally managed by the centralized dispatching.
The overall solution for heavy-duty mobile robots is mainly divided into the control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other modules according to the function of the whole vehicle of the mobile robot.
Detail
The overall solution for heavy-duty mobile robots is mainly divided into the control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other modules according to the function of the whole vehicle of the mobile robot.
Platform handling type
The platform handling mobile robot transports the target goods (materials and carriers) to the designated place using backpacking to achieve unmanned operation in the factory and production line.
The overall solution of a platform handling mobile robot is mainly divided into the control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add function, and other unit modules according to the whole vehicle function of the mobile robot.
Detail
The overall solution of a platform handling mobile robot is mainly divided into the control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add function, and other unit modules according to the whole vehicle function of the mobile robot.

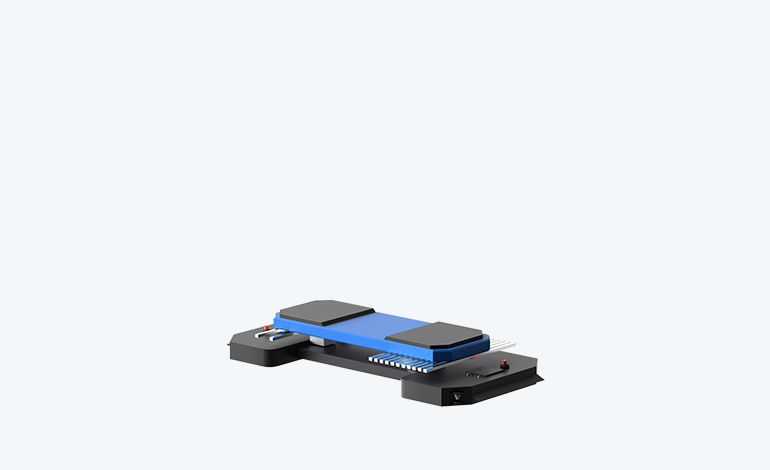

Parking type
The parking robot will automatically and precisely carry the car driven into the parking platform by the user to the parking space, and then automatically carry the car to the user's pick-up space when picking up the car. The parking robot not only saves the parking space, but also shortens the vehicle access time, providing a comfortable and convenient parking service.
The overall solution of parking mobile robot is mainly divided into unit modules consisting of control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, and optional functions according to the whole vehicle function of the mobile robot.
Detail
The overall solution of parking mobile robot is mainly divided into unit modules consisting of control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, and optional functions according to the whole vehicle function of the mobile robot.

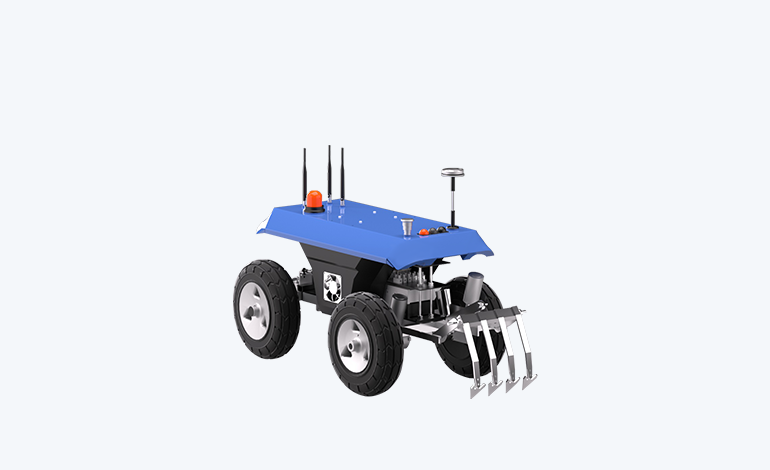

Outdoor type
Outdoor mobile robots carry out handling outdoors, generally using 4W4D chassis.
The overall solution of outdoor mobile robots is mainly divided into the control system, navigation, and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other units and modules according to the function of the whole vehicle of the mobile robot.
Detail
The overall solution of outdoor mobile robots is mainly divided into the control system, navigation, and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, add functions, and other units and modules according to the function of the whole vehicle of the mobile robot.
