Parking type

Introduction to the plan

The parking robot will automatically and precisely carry the car driven into the parking platform by the user to the parking space, and then automatically carry the car to the user's pick-up space when picking up the car. The parking robot not only saves the parking space, but also shortens the vehicle access time, providing a comfortable and convenient parking service.
The overall solution of parking mobile robot is mainly divided into unit modules consisting of control system, navigation and sensing, chassis drive, safety detection, interaction module, communication module, power supply unit, and optional functions according to the whole vehicle function of the mobile robot.

Plan composition

Control system

The control system is the main control module of the vehicle, which is the "brain" of the mobile robot and the decision-making and data concentration platform of the mobile robot.

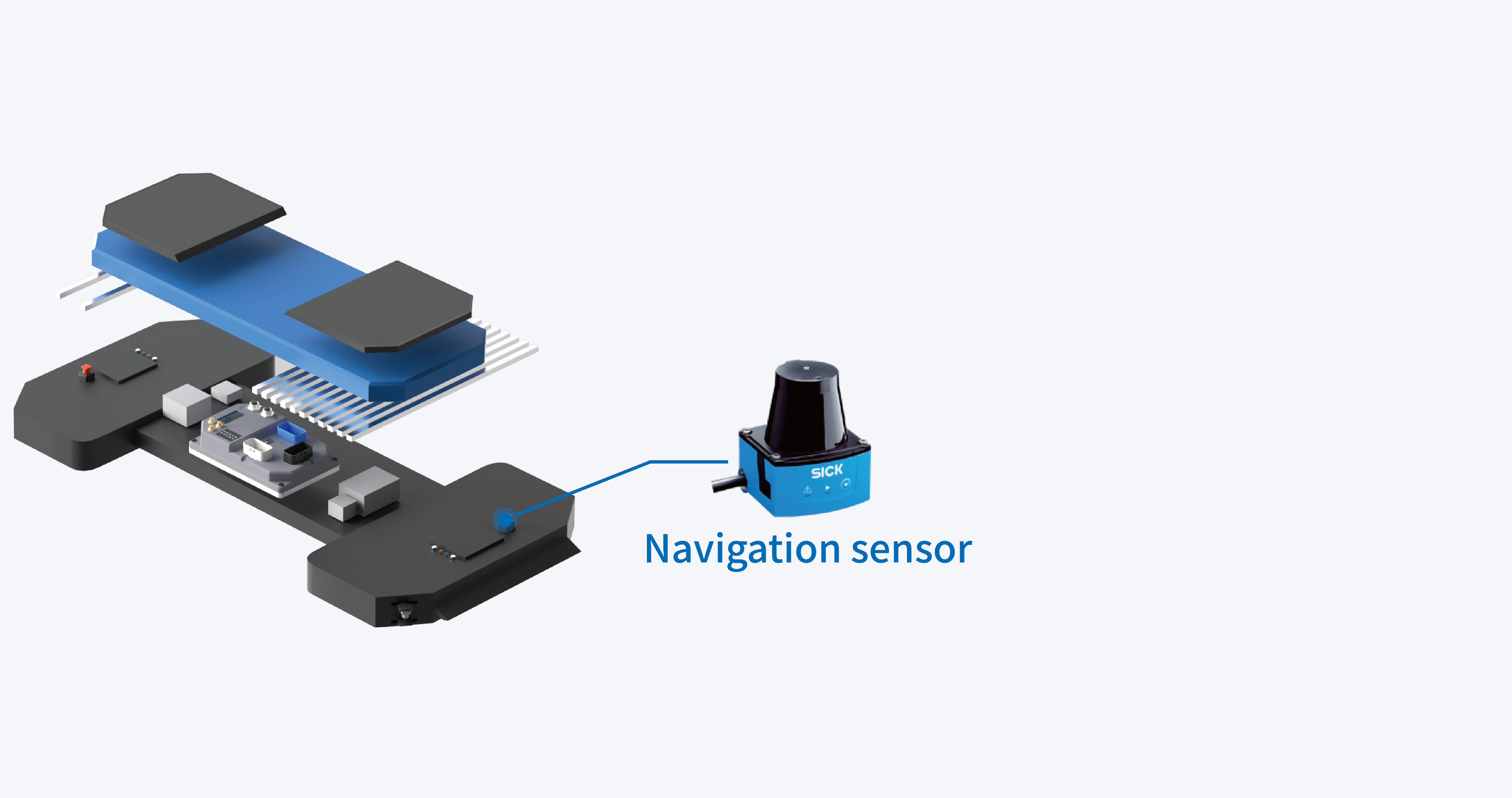

Navigation sensor

Navigation sensors are the "eyes" of the mobile robot, responsible for collecting environmental information and communicating with the main control unit. Different sensors are selected according to different navigation methods.

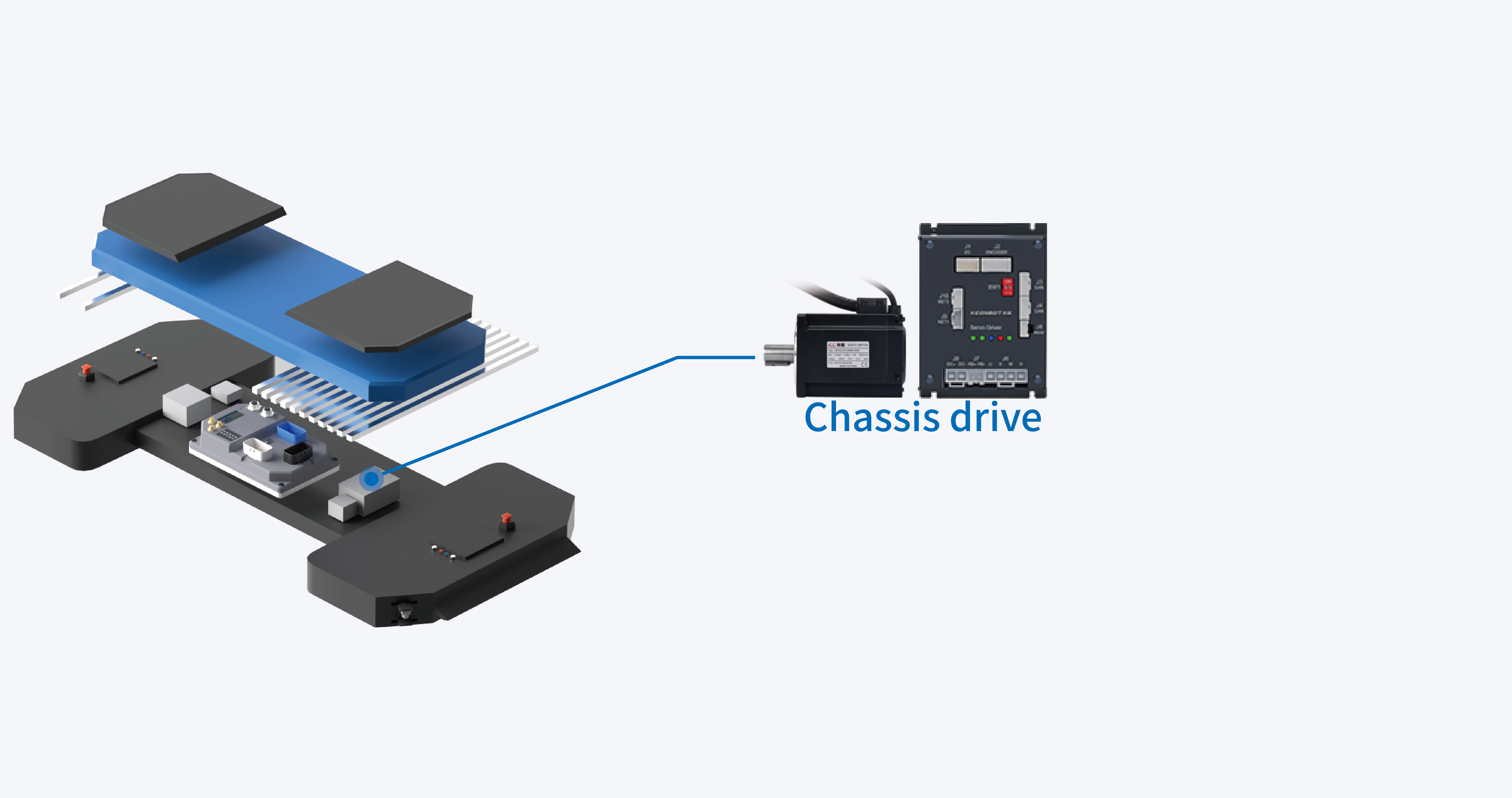

Chassis drive

The chassis drive is the "foot" of the mobile robot to achieve the robot's walking and steering functions. Generally, low voltage servo motors and motor drives are used. According to the chassis mode, load and other different types, power of the drive, reducer, motor and wheel combination.

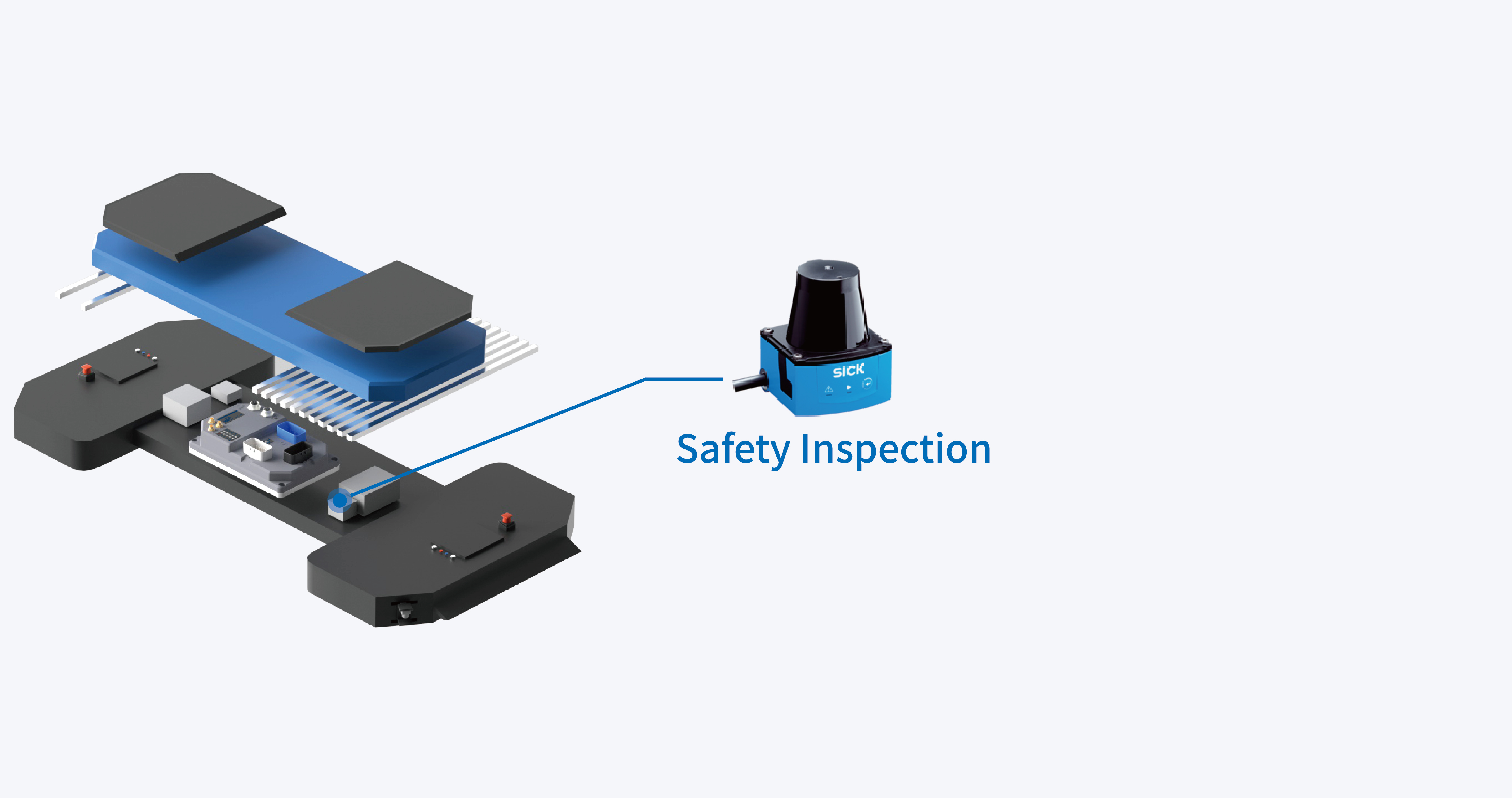

Safety detection

Safety detection is mainly to provide safety for mobile robots to achieve obstacle avoidance, obstacle bypass and other functions. According to different obstacle avoidance needs can choose different information acquisition unit, common vision camera, obstacle avoidance laser, ultrasound, touch edge and so on.

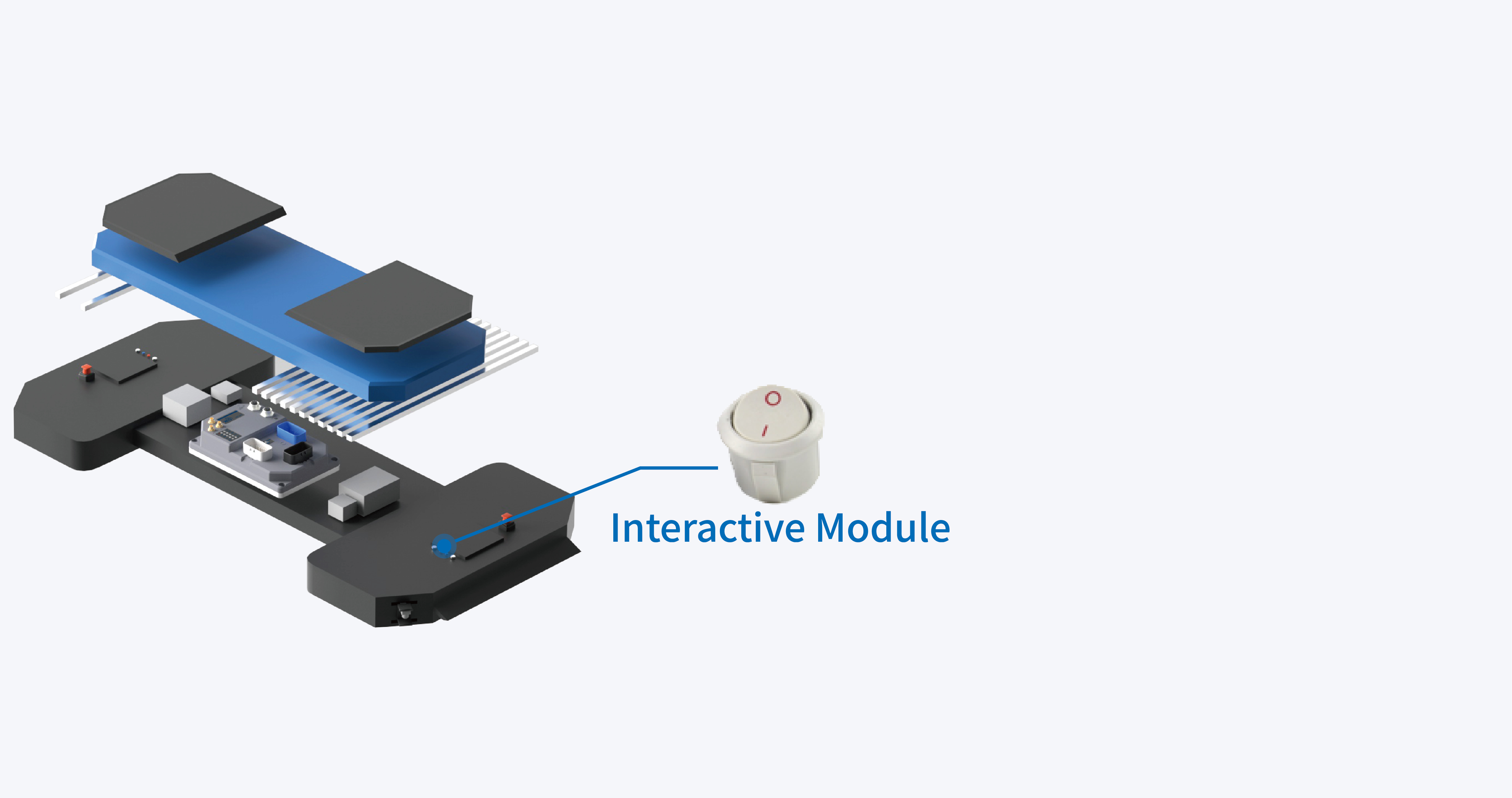

Interaction module

The interaction module provides interaction functions for the mobile robot. It mainly includes call modules, hand-held remoter, vehicle displays, etc., light switches and other HMI devices, etc.

Communication module

The communication module mainly realizes the wireless communication function of the mobile robot, as well as the wireless roaming switching function in large scenes.

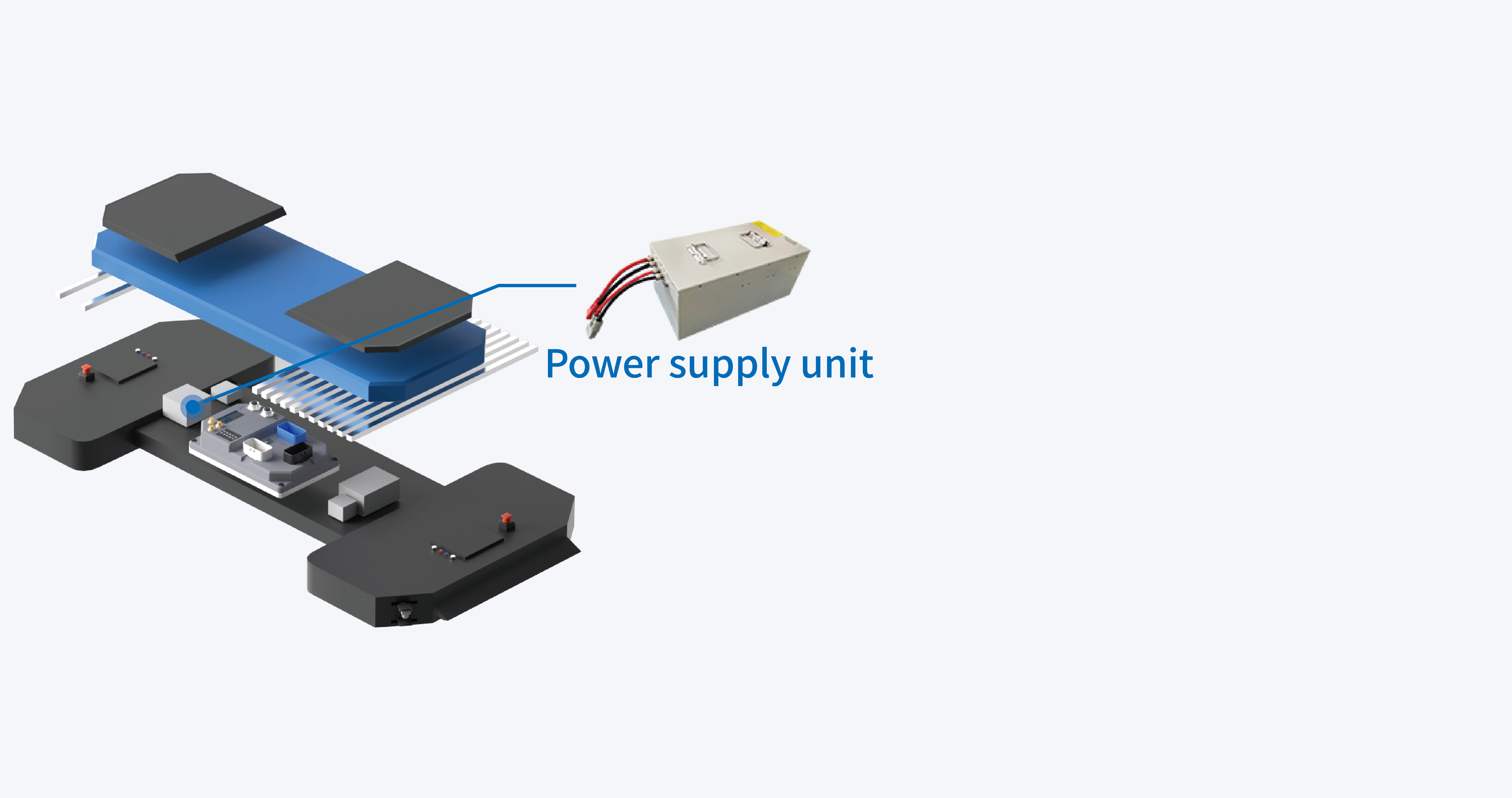

Power supply client

The power supply unit is the power source of the whole vehicle, which is composed of battery and BMS system, providing electrical energy for all the components of the whole vehicle, and there are common 24V and 48V lithium batteries.
