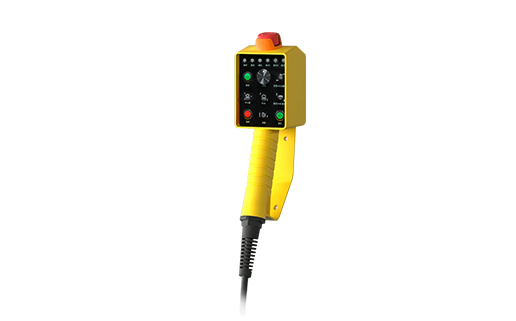

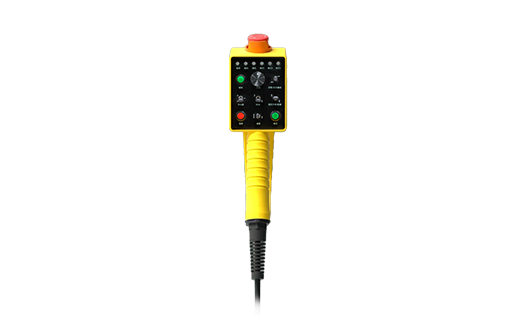

MRI5100-FS
Safety controller
MRI5100-FS is a safety handheld controller designed for engineering vehicles such as forklifts. It is suitable for industrial application requirements, with flexible operation and long durability. MRI5100-FS only supports RS485 communication method. MRI5100-FS is easy to use, precise in control, and can not only control the speed and steering of the vehicle, but also add user-defined functions through a customized method. MRI5100-FS is equipped with a vehicle emergency stop button, which can reset to zero with one click and supports manual/automatic mode switching. Mode switching also offers more functions.
Recommended applicable types
Fork type
Jacking type
Platform handling type
Cooperation type
Roller type
Pick type
Mecanum type
Towing type
Parking type
Outdoor type
Commercial service type
User-defined type
Basic parameters
Model | MRI5100-FS |
Description | Safety Handheld Controller |
Dimensions W × H × D (mm) | 246.5 × 83.87 × 72 (excluding cable lug) |
Protection Rating | IP54, flame-retardant, drop-resistant |
Operating Temperature | ≥ -30°C, ≤ +50°C |
Humidity | 10%–90% RH, non-condensing |
Supply Voltage | 18–60 VDC |
Operating Current | <100 mA |
Cable Length | 5 m |
Control Type | Momentary (spring-return) pushbutton, rotary switch, etc. |
Safety Integrity Level (SIL) | SIL3 |
Performance Level (PL) | PL e |
